Description:Typical applications include hot , cold and drinking water piping system Recommended maximum operating temperature : 200oF(93oC), the detail please refer to CPVC pipe derating factor. Note : Do not recommend to service or test with compressed air or gases.
Character: Water purity Microbiologically influenced corrosion free Low thermal conductivity high heat distortion temperature Quiet operation Excellent energy efficiency Easy installation light weight Long life Burning resistance Low smoke toxicity
SCH80 Reducer Coupling (S * S) Size Outside Dia Socket Type Structure Diameter D1 D2 d1 d2 I1 d3 d4 I2 d L L1 3/4" * 1/2" 37 30.5 26.87 26.57 25.4 21.54 21.23 22.22 16.5 57.5 30 1" * 3/4" 47 35 33.65 33.27 28.58 26.87 26.57 25.4 21 61 36 1-1/4" * 1" 55.5 44 42.42 42.04 31.75 33.66 33.27 28.58 28 68.5 42 1-1/2" * 1-1/4" 63 54 48.56 48.11 34.93 42.42 42.04 31.75 35 75 44 2" * 1-1/2" 75 60 60.63 60.17 38.1 48.56 48.11 34.93 42.5 82.5 49.5 (Unit : mm)
SCH80

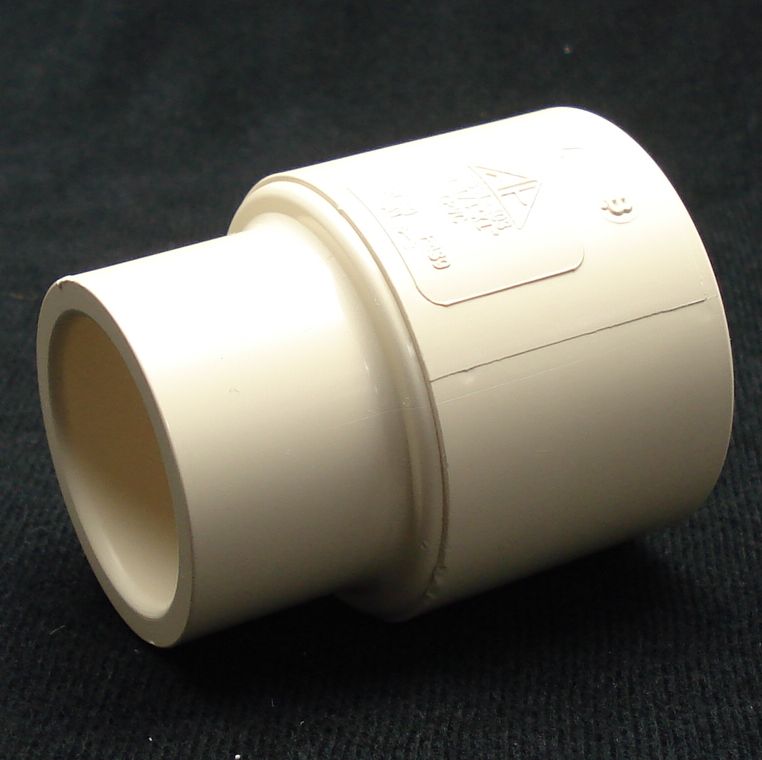

Reducer Coupling (S * S)
Size
Outside Dia
Socket Type
Structure Diameter
D1
D2
d1
d2
I1
d3
d4
I2
d
L
L1
3/4" * 1/2"
37
30.5
26.87
26.57
25.4
21.54
21.23
22.22
16.5
57.5
30
1" * 3/4"
47
35
33.65
33.27
28.58
21
61
36
1-1/4" * 1"
55.5
44
42.42
42.04
31.75
33.66
28
68.5
42
1-1/2" * 1-1/4"
63
54
48.56
48.11
34.93
75
2" * 1-1/2"
60
60.63
60.17
38.1
42.5
82.5
49.5
(Unit : mm)
CTS SDR11
Reducer Coupling (S*S)
27.6
21.2
22.45
22.10
18.0
16.08
15.72
13.0
14.0
37.5
34.8
28.83
28.47
23.0
20.0
43.0
34.5
35.20
34.85
28.0
24.5
58.0
3/4" ANSI*CTS
25.5
1" ANSI*CTS
29.0
