Description:Typical applications include hot , cold and drinking water piping system Recommended maximum operating temperature : 200oF(93oC), the detail please refer to CPVC pipe derating factor. Note : Do not recommend to service or test with compressed air or gases.
Character: Water purity Microbiologically influenced corrosion free Low thermal conductivity high heat distortion temperature Quiet operation Excellent energy efficiency Easy installation light weight Long life Burning resistance Low smoke toxicity
SCH80

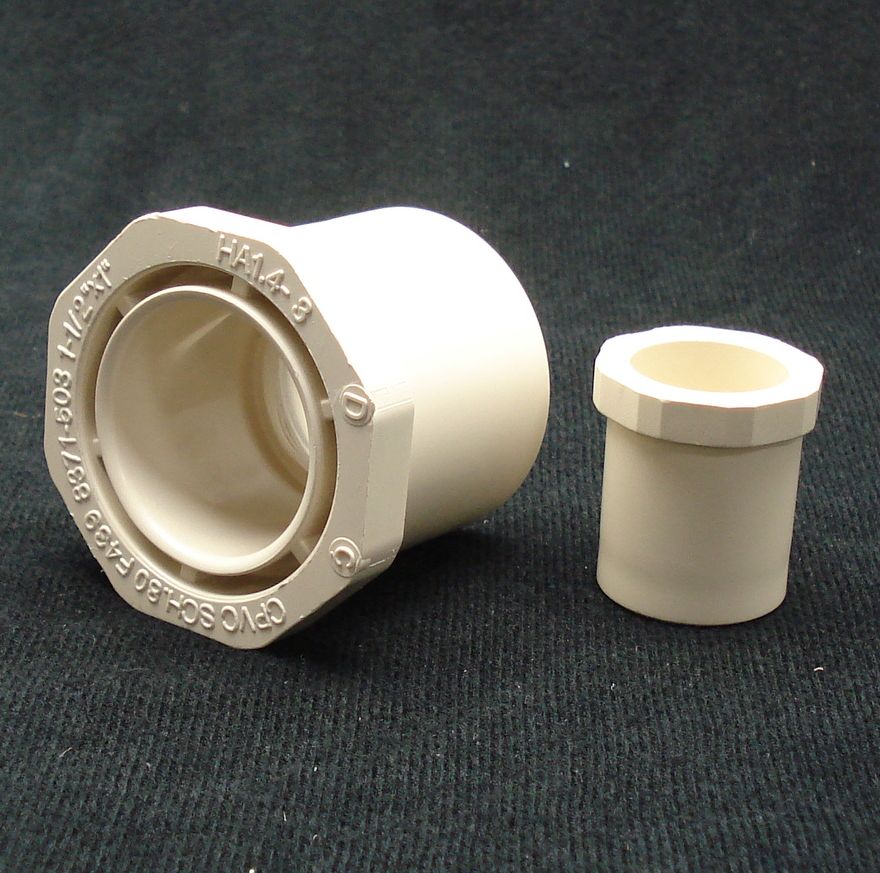

Reducer Bushing (G*S)
Size
Outside Dia
Socket Type
Structure Diameter
D0
d1
d2
l
d
L
L1
D1
B
3/4" * 1/2"
26.67
21.54
21.23
22.22
13
33
27
31
30
1" * 1/2"
33.40
38
39.5
1" * 3/4"
26.87
26.57
25.4
18
1-1/4" * 1"
42.16
33.65
33.27
28.58
28
44
35
52
50
1-1/2" * 1"
48.26
47
58
55
1-1/2" * 1-1/4"
42.42
42.04
31.75
2" * 1"
60.33
39
68
65
2" * 1-1/4"
2" * 1-1/2"
48.56
48.11
34.93
43
2-1/2" * 2"
73.03
60.63
60.17
38.1
54
60
48.5
85
80
3" * 2"
88.9
51
105
99
3" * 2-1/2"
73.38
72.85
44.45
4" * 2"
114.3
75
60.5
132
125
4" * 2-1/2"
4" * 3"
89.31
88.7
47.63
(Unit : mm)
CTS SDR11
22.2
16.08
15.72
13.0
14.0
18.0
23.0
23
24.0
28.6
29.0
31.5
22.45
22.10
20.0
1-1/4" * 1/2"
34.9
28.0
35.0
37
38.5
1-1/4" * 3/4"
28.83
28.47
24.5
1-1/2" * 1/2"
41.3
33.2
42.2
46
1-1/2" * 3/4"
35.20
34.85
2" * 1/2"
54.0
43.4
54.4
56
59
2" * 3/4"
41.66
41.20
37.5
